Principal Component Analysis

PCA is a statistical method for reducing the number of feature variables by combining those which are more similar. E.g. If you are classifying some objects which are all made of the same basic material, and have measures for size and weight, those might combine nicely into a new feature (call it "bigness"?) which still generally represents the same data.

**Faster:** Although it might not be obvious, large feature sets can often
be compressed to an amazing degree without significantly effecting their
accuracy, thereby greatly increasing speed and in some cases, fit. Applying
this method to large datasets with many features can significantly speed
up other learning methods. As computers become faster, this becomse less
of an issue.

**Compression**: Reducing the dataset has the obvious advantage of requiring
less memory.

**Visualization:** By reducing the feature dimensions to 2D or 3D data,
we can visualize the information for human insight and troubleshooting.

**Overfitting? No**: PCA is often missused to reduce overfitting.
Regularization is a better way to do this.

PCA can be thought of as fitting an n-dimensional ellipsoid to the data, where each axis of the ellipsoid represents a principal component. If some axis of the ellipse is small, then the variance along that axis is also small, and by omitting that axis and its corresponding principal component from our representation of the dataset, we lose only a commensurately small amount of information.

The goal of PCA is to find a direction (line, plane, n-dimensions) in a lower dimension upon which to project the current data, and to find the direction which causes the projection to be as close as possible to the original. So if we have 2 dimensions, we want to find a single line (a number line of 1 dimension) and tilt it at an angle on the 2D graph, then map the 2D points onto positions along that line. For higher dimensional problems, the idea is the same. 3D data is projected onto a 2D plane oriented within the 3D space.

When projecting the point to the (e.g.) line, the movement is done at right angles to the line, and not vertically along the axis, as would be the case in Linear Regression.

In the diagram shown here, direction 1 is better than direction 2, because
the point Xi will be mapped to Z_{i1}, which is a smaller movement
than if it were mapped to Z_{i2}.

We must perform mean normalization and may need to scale the range of the different features so that they are similar.

We then compute the covariance matrix which tells us far our dataset is spread
out, much like the standard deviation. A covariance matrix is a matrix whose
element in the i, j position is the covariance between the i th and j th
elements. In our case, this is:
sum_{i=1}^{n}(X^{(i)} X^{(i)T})/m or `sigma
= (X'*X)./m` in Octave where X is the data matrix of n dimensions by
m samples. A covariance matrix is always symmetric ( A =A' ).

We can use either `eig(sigma)` or `[U,S,V] = svd(sigma) `in
Octave. U is our covariance matrix.
S is a diagonal matrix of singular values which we can use later to compute
the compression error.

If k is the number of dimensions we want, (k < n), then take the first
k columns of the U matrix and multiply that times the X data matrix. Do not
include X_{0} = 1 offset parameters. So

Ur = U(:,1:k); %reduced subset of U taking first k columns Z = X * Ur; %new k dimensional data based on original data.

After finding Ur and Z, we may wish to reproduce a new approximate X, Xa, from those values, which has the original number of dimensions.

Xa = Z * Ur'; %note Ur is transposed

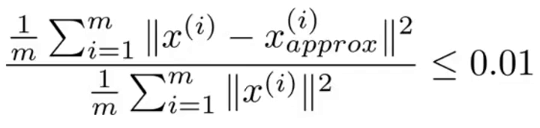

If our dimensional reduction was effective, Xa and X will be close. k should generally be chosen so that the average squared projection error divided by total variation is less than 0.01 as shown by the figure to the right. This error can be calculated for any value of k by summing the S matrix returned by the svd function along the diagonal for k elements, then dividing that by the total diagonal sum of S and subtracting the result from 1. e.g.

1 - ( sum(S(1:k,1:k)(:) / sum(S(:)) )

This allows us to quickly find the value of k which produces the desired
total variation. *Pro tip, instead of subtracting from 1, just look for
the divisor that gives > 0.99.*

See also:

- https://en.wikipedia.org/wiki/Principal_component_analysis
- https://liorpachter.wordpress.com/2014/05/26/what-is-principal-component-analysis/

Excellent and simple video that explains it in small steps:
